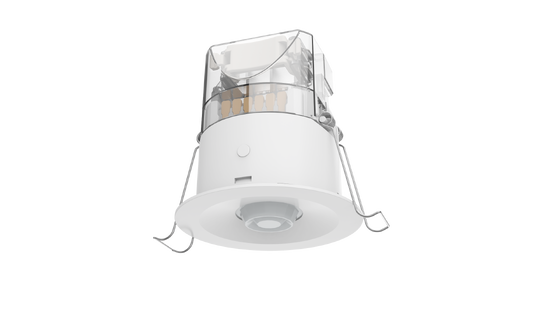

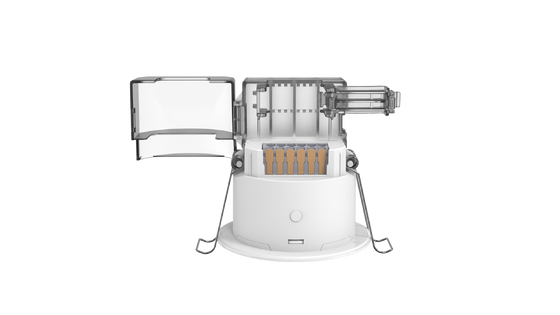

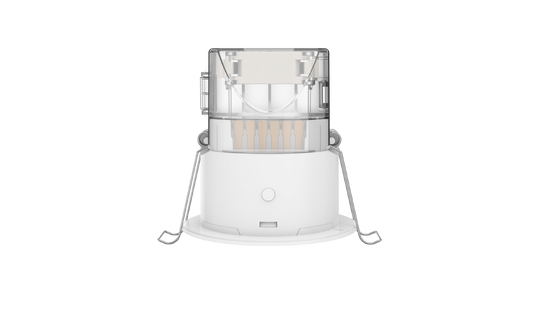

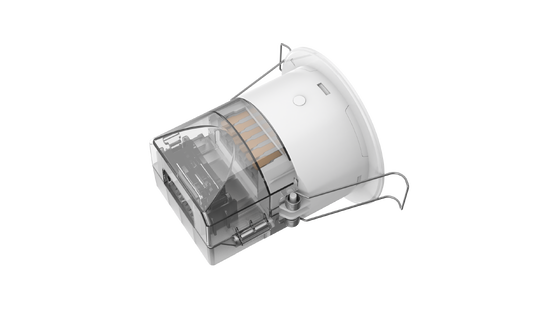

Easy-use series Casambi wireless mesh PIR detector with relay output and daylight harvesting function

  • Easy-use series Casambi wireless mesh PIR detector with relay output and daylight harvesting function
  • Easy-use series Casambi wireless mesh PIR detector with relay output and daylight harvesting function
  • Easy-use series Casambi wireless mesh PIR detector with relay output and daylight harvesting function
  • Easy-use series Casambi wireless mesh PIR detector with relay output and daylight harvesting function
Nguồn gốc Trung Quốc
Hàng hiệu Merrytek
Chứng nhận CE
Số mô hình MSA246S IR B1
Số lượng đặt hàng tối thiểu 100 chiếc
Giá bán Có thể đàm phán
chi tiết đóng gói Hộp trắng + Thẻ hộp trắng + Tấm ốp + Thùng (K=A)
Thời gian giao hàng 1, mẫu và đơn đặt hàng nhỏ: Trong vòng 5 ngày làm việc sau khi nhận được thanh toán của bạn. 2, Đơn
Điều khoản thanh toán T/T
Khả năng cung cấp 10,000pcs mỗi tháng

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Điện áp đầu vào 100-240VAC Dòng điện làm việc 20mA max.
Tiêu thụ điện năng .50,5W Chức năng BẬT/TẮT 1 kênh + Giao tiếp Casambi BLE
Có sẵn Máy dò PIR lưới không dây Casambi với đầu ra rơle Chiều cao gắn kết 2.5-4m
Cài đặt Máy đắp bằng nước Cắt kích thước Φ65mm
Làm nổi bật

Casambi wireless PIR detector

,

mesh PIR motion sensor with relay

,

daylight harvesting PIR sensor
Để lại lời nhắn
Mô tả sản phẩm
Easy-use Series Casambi Wireless Mesh PIR Detector
Advanced PIR motion detection sensor with 360° ceiling mounting capability for automated lighting control in industrial and commercial environments. Features relay output and daylight harvesting function.
Key Features
  • PIR motion detection technology
  • Connect to the Casambi BLE ecosystem
  • Accurate ON/OFF output control and Casambi communication
  • Daylight priority and daylight threshold working modes
  • Daylight learning function capability
  • Detection area and hold time can be set by the Casambi app
  • Maximum detection range: 10-14m diameter
  • 2-4m mounting height
  • Max load capacity: 1200W resistive loading and 600W inductive loading
  • Corridor, passage motion detection application is highly recommended
  • Flush mounting and surface mounting available
Technical Specifications
Input/Output Parameters
Input Voltage 100-240V AC
Rated Voltage 230V AC
Working current 20mA max
Power Consumption ≤0.5W @230VAC
Working Mode 1 Channel ON/OFF + Casambi BLE
Surge Protection 2KV(L/N, EN61000-4-5)
Surge Capacity 30A (50% Ipeak, twidth=500us, 230Vac full load, cold start)
Load Capacity 1200W resistive loading or 600W inductive loading
Sensor Parameters
Function PIR motion detection + daylight sensor
Detection Area Casambi app setting: 100%/75%/50%/25%
Hold Time Default setting 2s+ Linger time set by Casambi App
Daylight Sensor Set by Casambi App under close Loop
Mounting Height 2-4m (typical value: 3m)
Application Environment
Drill Hole Φ65mm
Working Temperature -25℃ to +50℃
Storage Temperature -40℃ to +80℃
Certification & Standards
Certificate Compliant with CE
Environmental Requirements Compliant with RoHS
IP Rating IP20

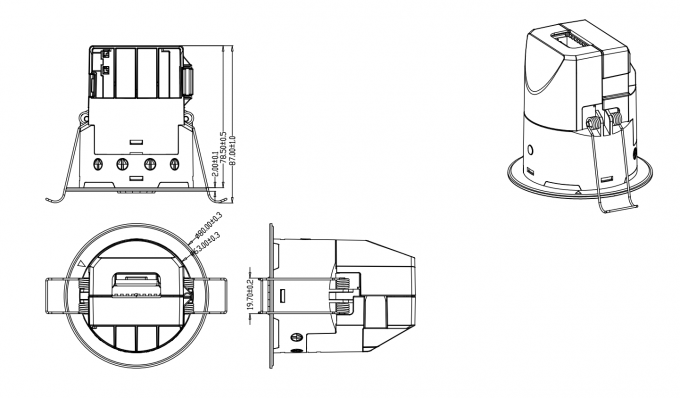

Dimensions & Function
PIR 360° Ceiling Mount Occupancy Sensor dimensions diagram Easy-use series Casambi wireless mesh PIR detector with relay output and daylight harvesting function 1
Wiring Diagram
Easy-use series Casambi wireless mesh PIR detector with relay output and daylight harvesting function 2
Important Wiring Notes:
  1. LN is the AC input terminal, and L'N is the AC output terminal. Please ensure the wiring sequence is correct.
  2. Single load requirements for a single sensor output: resistive loads should not exceed 1200W, and capacitive loads should not exceed 600W. When connecting multiple loads, surge capacity and total load must be considered. We recommend connecting an AC contactor or AC solid-state relay to the sensor output terminal to prevent damage to the sensor due to inrush current overload when one sensor is connected to multiple loads.
  3. The effective range of Bluetooth communication is 40m in open areas. If there are walls obstructing the view, the quality of Bluetooth communication may be affected.
Easy-use series Casambi wireless mesh PIR detector with relay output and daylight harvesting function 3
Initialization & Default Settings
When powered on, the sensor will be in the initialization period, and the relay will be closed during this period. After initialization time, the relay is open, detection range, hold time, and daylight value can be set via the Casambi App.
Factory Default Settings
  • Detection Area: 100%
  • Hold Time: 2 seconds
  • LED Indicator: ON
Detection Radiation Pattern
Easy-use series Casambi wireless mesh PIR detector with relay output and daylight harvesting function 4
Casambi APP Settings
Easy-use series Casambi wireless mesh PIR detector with relay output and daylight harvesting function 5
Application Precautions
  1. This infrared pyroelectric sensor should be installed by a professional electrician. Power should be disconnected before installation and wiring.
  2. The optimal installation height for this infrared pyroelectric sensor is 3m. It should not be installed outdoors to avoid false triggering due to ambient temperature. It should not be installed in locations sensitive to temperature or airflow changes to prevent false triggering or overheating, leading to sensor failure.
  3. The detection range of this infrared pyroelectric sensor should not be obstructed by screens, furniture, large potted plants, or other barriers.
  4. There should be no reflective objects directly in front of this infrared pyroelectric sensor, as reflected light can cause false triggering.
  5. This infrared pyroelectric sensor should be kept away from large electromagnetic radiation equipment, such as Wi-Fi routers, cameras, microwave ovens, etc. It is recommended to keep them at least 2 meters away to prevent electromagnetic interference.
  6. The sensing distance of this infrared pyroelectric sensor may fluctuate depending on the installation height and ambient temperature compared to the typical value.
