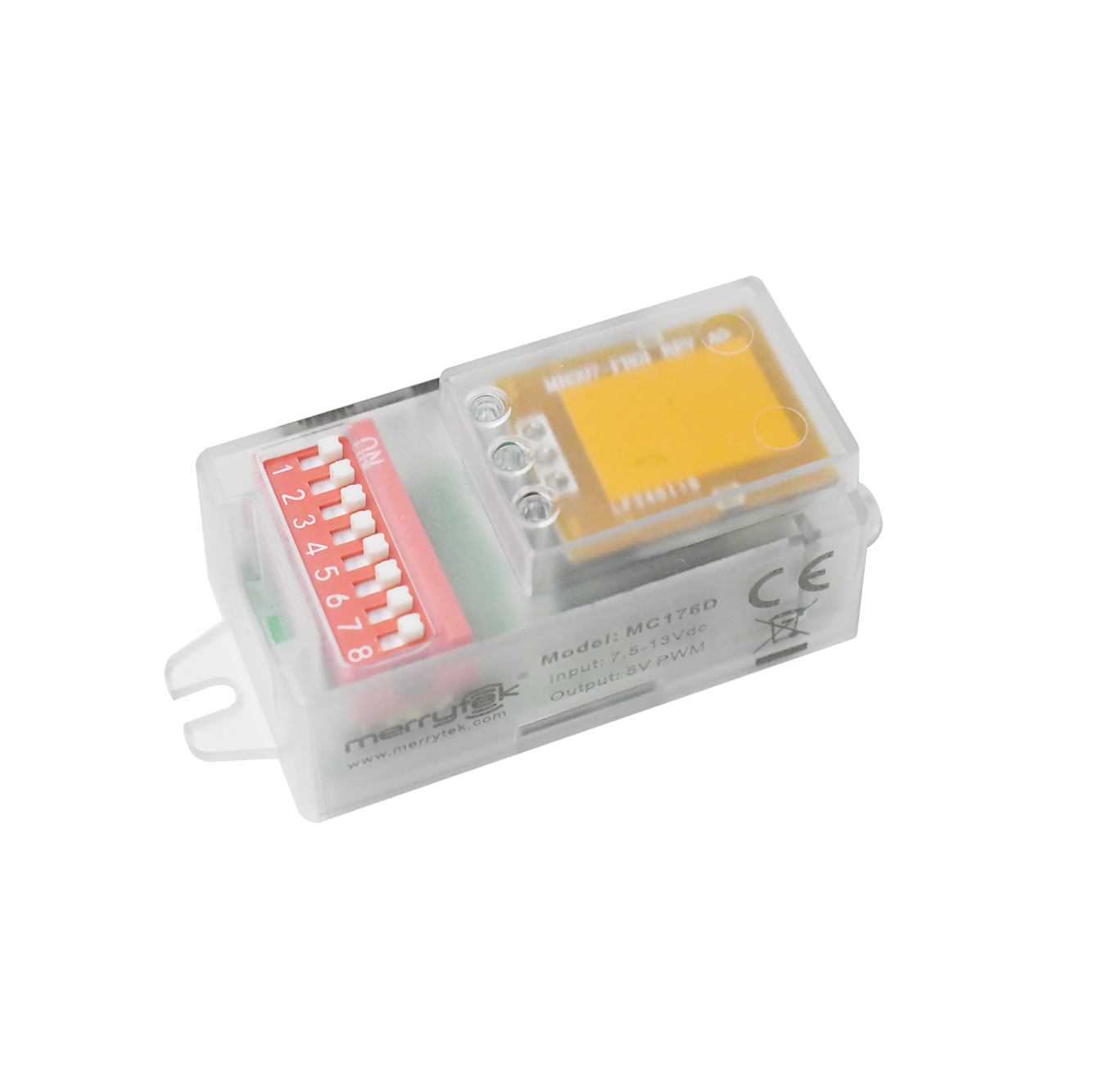

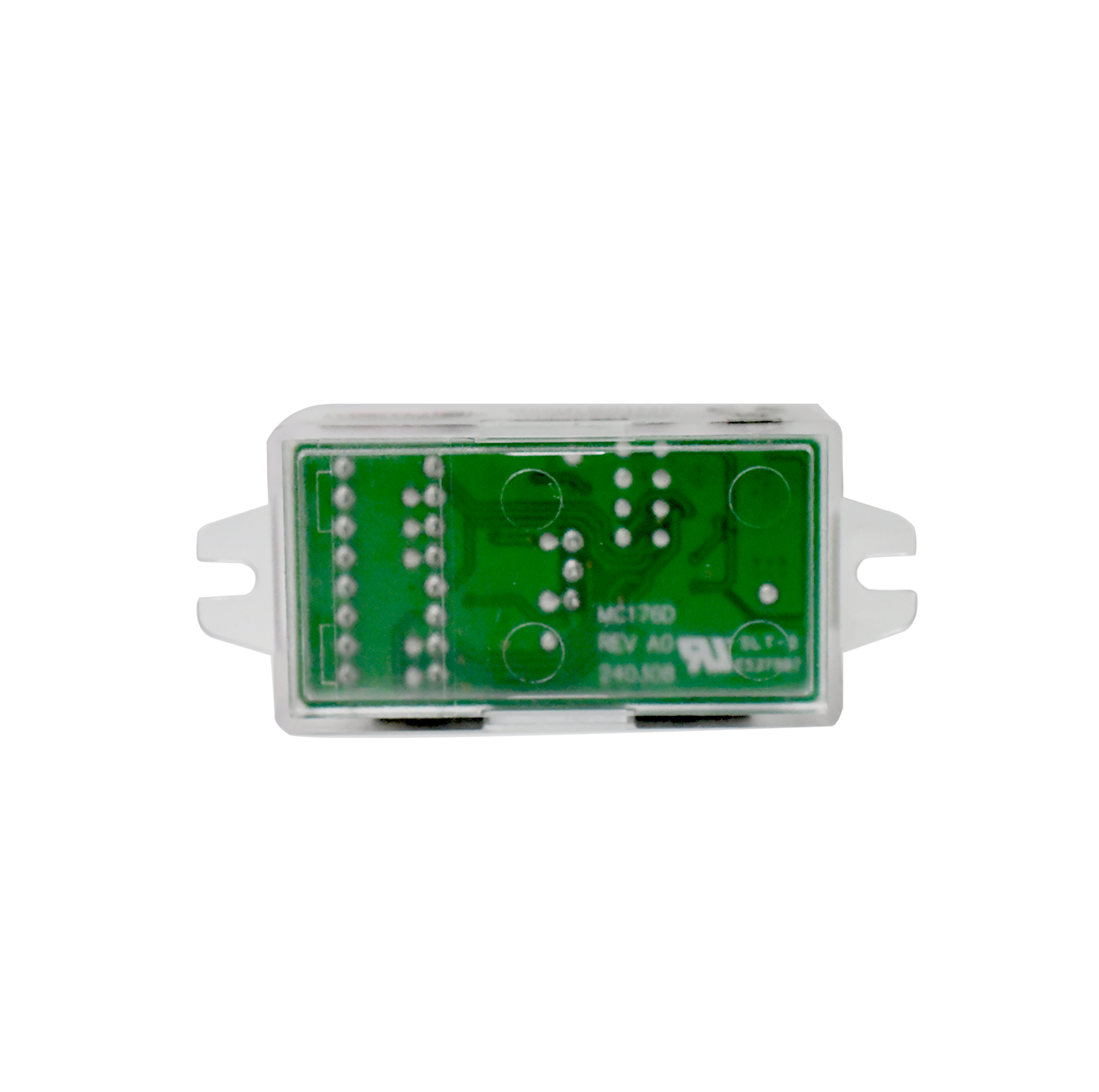

Microwave Motion DC Sensor, With Daylight Harvesting Function, DIP Switch Setting
Product Features
  • 7.5-13VDC Input, Matching DC power or With 12VDC
  • LED driver supply for auxiliary power output
  • 5V PWM dimming signal, 3 steps or 2 steps dimming
  • All motion sensor parameter setting by DIP
  • Low impedance antenna module with light guide column design small size, can reduce the opening of the lamp board
  • Daylight priority function
Parameters
Input
Rated voltage 7.5-13VDC
Working current 16±2mA
Ripple voltage < 100mVp-p
Output
Output signal 5V PWM dimming signal
Daylight Sensor
Daylight threshold 5Lux/15Lux/50Lux/Disable
Daylight priority ON | OFF
5Lux 15Lux
15Lux 50Lux
50Lux 100Lux
Dimming level 25%
Sensing Parameters
Working frequency 5.8GHz ±75MHz, ISM band
Transmit power 1mW Max.
Detection Area 100%/75%/50%/25%
Hold Time 5s/90s/3min/10min
Stand-by period 0s/30s/10min/+∞
Detection range (radius) Ceiling installation 3m high: r≥4m@0.3m/s, r≥2.5m@1m/s; Horizontal installation 2m high: r≥8m@0.3m/s, r≥4m@1m/s
Installation height 3m (6m Max)
Environment
Working temperature Built-in: -25~60℃
Storage temperature -40℃…80℃, humidity ≤85% (non-condensing)
Certification Standards
Certified CE, RED (Pending)
Environmental requirements Comply with RoHS 2.0, Reach requirements
IP Rating IP20
Other
Wiring 3pin 2.0mm terminal
Installation requirements built-in installation
Packaging requirements Bubble bag + partition + outer box (K=A)
Net weight 13 ±2g
Lifetime 5 Years Warranty@Ta
Function Description
MC176D Function
ON/OFF function N/A
Two-step dimming function Stand-by Period be set to "+∞"
Three-step dimming function Stand-by Period be set to "30S/10min"
Daylight harvesting N/A
Daylight priority Stand-by Period be set to "+∞"
Operation Diagrams
On/OFF Function (set Stand-by Period to "0s")
Microwave Motion DC Sensor, With Daylight Harvesting Function, DIP Switch Setting 0
2-step Dimming Function (set Stand-by Period to "+∞")
Microwave Motion DC Sensor, With Daylight Harvesting Function, DIP Switch Setting 1
3-step dimming function (stand-by period be set to "10S/1min/3min/5min/10min/30min")
Microwave Motion DC Sensor, With Daylight Harvesting Function, DIP Switch Setting 2
Daylight Priority
Microwave Motion DC Sensor, With Daylight Harvesting Function, DIP Switch Setting 3
Diagrams
Dimension(mm)
Microwave Motion DC Sensor, With Daylight Harvesting Function, DIP Switch Setting 4
Wiring, Function
Microwave Motion DC Sensor, With Daylight Harvesting Function, DIP Switch Setting 5 Microwave Motion DC Sensor, With Daylight Harvesting Function, DIP Switch Setting 6
DIP Switch Setting
Detection Area Hold Time Daylight Sensor Stand-by period
Turn on Turn off
Ⅰ ON ON 100% ON ON 5S ON ON 5Lux 15Lux ON ON 0S
Ⅱ - ON 75% - ON 90S - ON 15Lux 50Lux - ON 30S
Ⅲ ON - 50% ON - 3min ON - 50Lux 100Lux ON - 10min
Ⅳ - - 25% - - 10min - - Disable - - - +∞
Radiation Diagram
Microwave Motion DC Sensor, With Daylight Harvesting Function, DIP Switch Setting 7
Initialization

The sensor will turn on the light at 100% brightness for the first time, and turn it off after 10 seconds. During the initialization period, no external motion sensing signal will be detected.

Default Setting

Sensitivity: 100% Hold time: 5s Daylight Sensor: Disable; Stand-by period: 0S; Stand-by Dim Level: 25%

Application Notice
  • The sensor should be installed by a professional electrician. Please cut off the power before installing, wiring, changing the setting of the DIP switch, etc.
  • The detection distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector.
  • When the microwave sensor is installed on the wall, the detection distance will be greatly increased compared with that installed on the ceiling.
  • Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
  • This sensor is only for indoor use, outdoor wind and rain, and surrounding moving objects will cause false triggering.
  • The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters; the distance between the two sensors should be greater than 3 meters.
  • When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow closed environment, microwaves will be reflected multiple times and cause false triggering.
  • Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
  • Microwaves cannot penetrate metal, avoid installing in closed or semi-closed metal lamps, and there should be no metal or glass blocking the product.
  • Sensor with different PWM / 0-10V driver, low light effect may be different.
  • A DC regulated power supply with stable output voltage and low ripple coefficient must be used. The ripple of the power supply should be less than 100mV; the load current should be greater than 25mA.
  • Product specifications and parameters may be optimized without prior notice.
