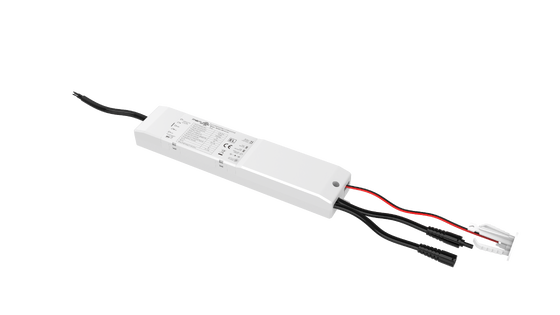

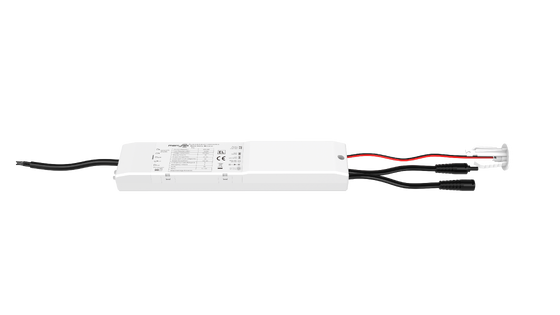

2W LED Emergency Kits self contained emergency pack With 5 Years Warranty And 3 Hours Emergency Time

  • 2W LED Emergency Kits self contained emergency pack With 5 Years Warranty And 3 Hours Emergency Time
  • 2W LED Emergency Kits self contained emergency pack With 5 Years Warranty And 3 Hours Emergency Time
Nguồn gốc Trung Quốc
Hàng hiệu Merrytek
Chứng nhận CE, UKCA, UN38.3,MSDS
Số mô hình KE026-02AM180HB
Số lượng đặt hàng tối thiểu 100
Giá bán Có thể đàm phán
chi tiết đóng gói Trước tiên được đóng gói trong túi bong bóng, sau đó được gia cố bằng thùng carton để đóng gói bên n
Thời gian giao hàng 1, mẫu và đơn đặt hàng nhỏ: Trong vòng 5 ngày làm việc sau khi nhận được thanh toán của bạn. 2, Đơn
Điều khoản thanh toán T/T hoặc Liên minh phương Tây
Khả năng cung cấp 10,000pcs mỗi tháng

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Điện áp đầu vào định mức 220-240Vac 50Hz /60Hz Năng lượng khẩn cấp 2W ((Có thể được tùy chỉnh)
Thời gian khẩn cấp 180min (Có thể được tùy chỉnh) Bảo hành 5 năm (bao gồm pin)
Điện áp đầu ra tải 20-60Vdc Nhiệt độ làm việc 0 ~ 50
xếp hạng ip IP20 Loại pin LifePO4 6.4V 1800mAh
Làm nổi bật

2W LED emergency kit with warranty

,

self-contained emergency pack 3 hours

,

LED emergency driver 5 years warranty
Để lại lời nhắn
Mô tả sản phẩm
2W LED Emergency Kits Self-Contained Emergency Pack With 5 Years Warranty And 3 Hours Emergency Time
Product Overview

Constant power output LED emergency power supply with wide output voltage range, featuring LifePO4 battery technology and comprehensive safety protections.

Key Features
  • Constant power output LED emergency power supply with wide output voltage range
  • Input relay switching
  • High safety, high performance, long life LifePO4 battery
  • Integrated battery management system
  • Manual test and automatic test selection options
Technical Specifications
Charge Part KE026 | 02AM180HB
Electrical Parameters Rated input voltage 220-240Vac 50Hz/60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 10A(Twidth=100us 50% Ipeak )@230Vac (Cold start at full load)
Power factor ≥0.5@230Vac
Input power <4W@230Vac
Battery charging current 200mA Max.
Battery charging time 24 hours Max.
Emergency Part Operating mode Emergency mode
Load type LED
Emergency power 2W
Emergency time 3 hours
Load output current 100-30mA
Battery Type & Capacity LifePO4 6.4V 1800mAh (meets emergency time at 25℃)
Warranty 5 years @5~60℃
Exception Driver Requirements Surge current 8A
Input current 3A Max.
Output current 2A Max.
LED Indication (Manual test) Charging Green light
Fault Green light off
Manual test Default
Auto test Pin open
Auto Testing Status Indicators
Battery fully charged & operational Solid green
Battery charging Flashing green (1 sec on, 1 sec off)
Protection Features Abnormal protection Over-charge/deep discharge protection
Output over-voltage protection Yes
Output overload protection Yes
Output short circuit protection Yes
Operating Environment Operating temperature/humidity 0℃…+50℃ Humidity:20%-75%(without condensation)
Storage temperature/humidity -5℃-35℃
Case Max. Temp(Tc) 75℃
Standards & Certifications Withstand voltage 3000Vac 5mA 60s (Input "L N" - output "SEC+ SEC-")
Safety standard EN61347-1, 60598-2-22, 61347-2-7, 62034
EMC standard EN55015, EN61000-3-2, EN61000-3-3
Battery standard UN38.3
Environmental protection Compliant with RoHS
Certification CE
Physical Specifications Input/output terminals Press terminal, wire diameter: 0.75-1.5mm²
IP rating IP20
Type of protection Class 2
Installation type Built-in installation
Installation dimension 211×42.5×25mm
Packaging White box + Instruction manual + clapboard + outer carton (K=A)
Weight 230g
Lifespan 5 years @Ta
All parameters are tested on input voltage 230Vac, environment temperature 25℃, unless otherwise specified.
Product Dimensions
2W LED Emergency Kits self contained emergency pack With 5 Years Warranty And 3 Hours Emergency Time 0
Wiring Diagrams
2W LED Emergency Kits self contained emergency pack With 5 Years Warranty And 3 Hours Emergency Time 1
2W LED Emergency Kits self contained emergency pack With 5 Years Warranty And 3 Hours Emergency Time 2
Test Mode Configuration
2W LED Emergency Kits self contained emergency pack With 5 Years Warranty And 3 Hours Emergency Time 3
Manual Test Operation
  1. Before installation, set Pin short: Manual Test
  2. Connect the wire according to the wiring diagram
  3. L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light turns green, and the emergency power supply is normal charging. Turn off Switch S1, and the load lamp turns off
  4. Emergency Simulation: Switch on, the load lamp turns on, press the switch (TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch (TEST SWITCH), then the lamp is powered by the LED driver, and the indicator light will turn on
Automatic Test Operation
  1. Before installation, set Pin open: Automatic Test
  2. Connect the wire according to the wiring diagram
  3. L, N power on, start the clock, and perform a periodic self-test. To replace the battery, turn off the power supply, and re-time
Battery Application Guidelines
  • The battery should be recharged and discharged semiannually in normal use conditions
  • Do not connect to the circuit when the battery is not used to prevent over-discharge of the battery due to self-consumption of the circuit board
  • Please keep the battery away from heat sources when installing and using it, and only allow it in a certain working temperature range
  • The battery should be stored in a cool and dry environment
  • After a long time of storage, the battery is cycled every 12 months as required
  • AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and re-time
